ROZWIĄZANIA GSM/GPRS FIRMY QUECTEL

Strona internetowa producenta: www.quectel.com

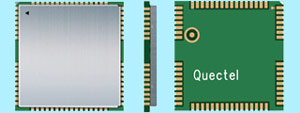

Moduł M10 (Quad-band GSM/GPRS wireless 64-pin SMD module)

Kod produktu: M10

The M10 is a complete Quad-band GSM/GPRS solution in an SMD type which can be embedded in customer application, offering the highest reliability and robustness.

Featuring an industry-standard interface, the M10 delivers GSM/GPRS 850/900/1800/1900MHz performance for voice, SMS, Data, and Fax in a small form factor and with extremely low power consumption. With a tiny configuration of 29mm x 29mm x 3.6mm, the M10 can fit into almost all the M2M applications, including VTS, Smart Metering, Wireless POS, Security, etc.

. Quad-band GSM/GPRS module
. SMD type for easy production
. Embedded powerful Internet protocols
. Based on mature and field-proven platform

Do pobrania:

M10 GSM Module Specification

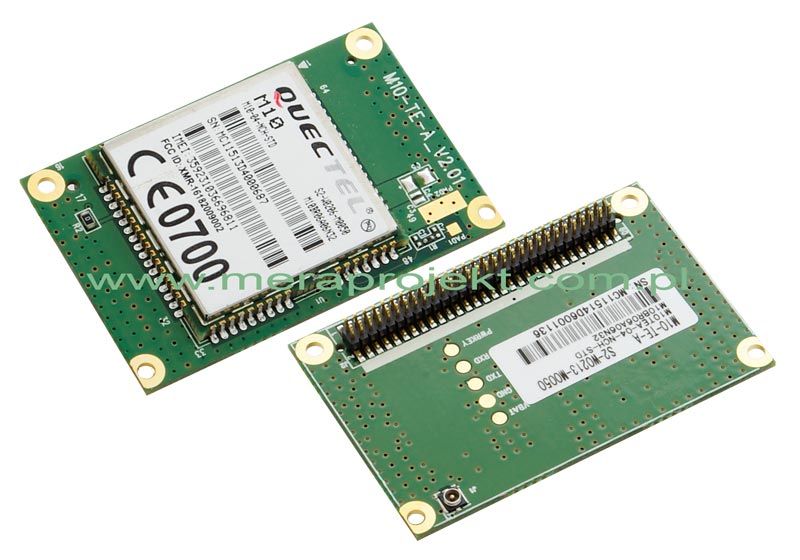

Moduł M10 z adapterem

Kod produktu: M10-TE-A

Moduł M12 (Quad-band GSM/GPRS wireless 64-pin SMD module)

Kod produktu: M12

The M12 is a dual-band GSM/GPRS wireless module in SMD type. It is pin-to-pin compatible with the M10 quad-band module. The M12 can be embedded in customer applications, offering good reliability and robustness.

eaturing an industry-standard interface, the M12 delivers GSM/GPRS 900/1800MHz performance for voice, SMS, Data and Fax in a small form factor with extremely low power consumption. With a tiny configuration of 29mm x 29mm x 3.6mm, the M12 can fit into almost all M2M applications, including VTS, AMR, Wireless POS, Security, etc.

. Dual-band GSM/GPRS module with a size of 29mmx29mmx3.6mm
. SMD type suits for customer application
. Embedded TCP/IP protocol
. Based on mature and field-proven platform

Do pobrania:

M12 GSM Module Specification

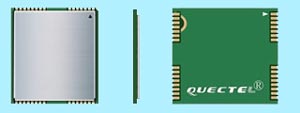

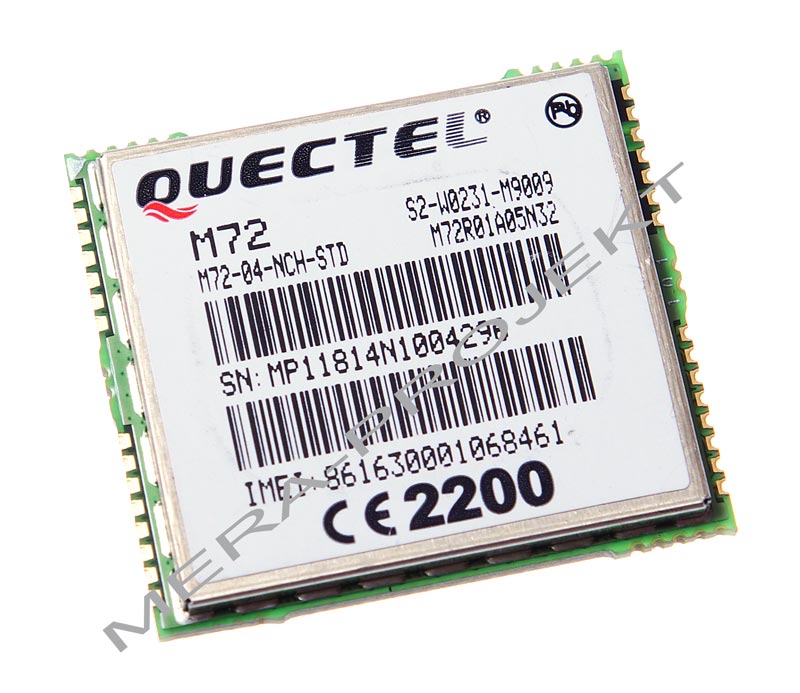

Moduł M72 (Dual-Band GSM/GPRS SMT module with TCP/IP)

Kod produktu: M72

The M72 packs a dual-band GSM/GPRS module with TCP/IP connectivity supporting GPRS Class 12 data transmission into a very small form factor. Featuring SMD type, full shielding, extremely low power consumption and small size, it brings the benefits of utmost flexibility and robustness to customer's application.

Equipped with industry-standard interface, the M72 is your all-rounder of choice for VTS, Smart Metering, Wireless POS, Security, and many other M2M applications.

. Dual-band GSM/GPRS module
. Very small size 27.5mm×24mm×3.6mm
. SMD for easy SMT production
. Support Data and SMS service

Do pobrania:

M72 GSM Module Specification

M72 Hardware Design

M72 AT Commands Set
