Moduł L10 (MT3329 chipset, 22.4x17x3.0mm, UART, USB, 28-pin SMD)

Kod produktu: L10

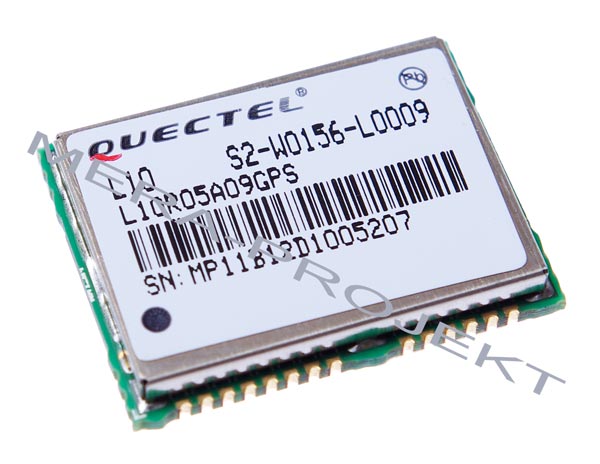

The GPS module L10 brings the high performance of the MTK positioning engine to the industrial standard. The L10 supports 210 PRN channels. With 66 search channels and 22 simultaneous tracking channels, it acquires and tracks satellites in the shortest time even at indoor signal level. This versatile, stand-alone receiver combines an extensive array of features with flexible connectivity options. Their ease of integration results in fast time-to-market in a wide range of automotive, consumer and industrial applications.

. 210 PRN channels, with 66 search channels and 22 simultaneous tracking channels
. -165dBm tracking sensitivity
. Highest autonomous mode acquisition sensitivity, -148dBm
. Low tracking power consumption, 38mA (passive antenna)
. Full ESD protection on all pins
. Embedded with one 4Mbits flash memory
. Superior anti-jamming design for best integration with other wireless application, such as WiFi, WiMax, CDMA and GSM
. Multi-path detection and correction for accurate navigation in harsh urban canyon
. Up to 5Hz update rate
. USB 2.0 full speed compliant interface

Do pobrania:

L10 GPS Module Specification

L10 GPS Protocol Specification

L10 Hardware Design Application Notes

L10 Hardware Design

Zestaw uruchomieniowy dla modułu GPS L10

Kod produktu: L10EVB-KIT

Zestaw zawiera moduł GPS L10

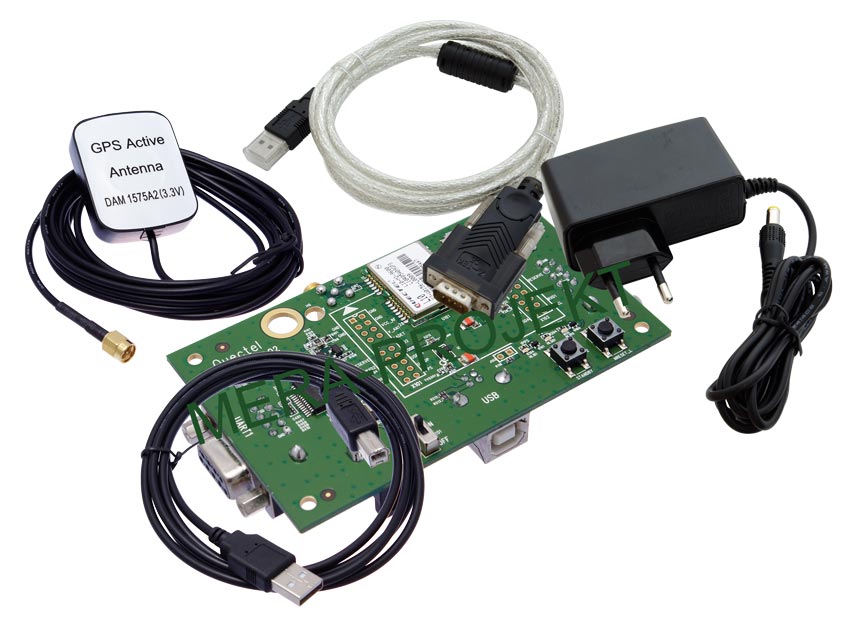

W skład zestawu wchodzą:

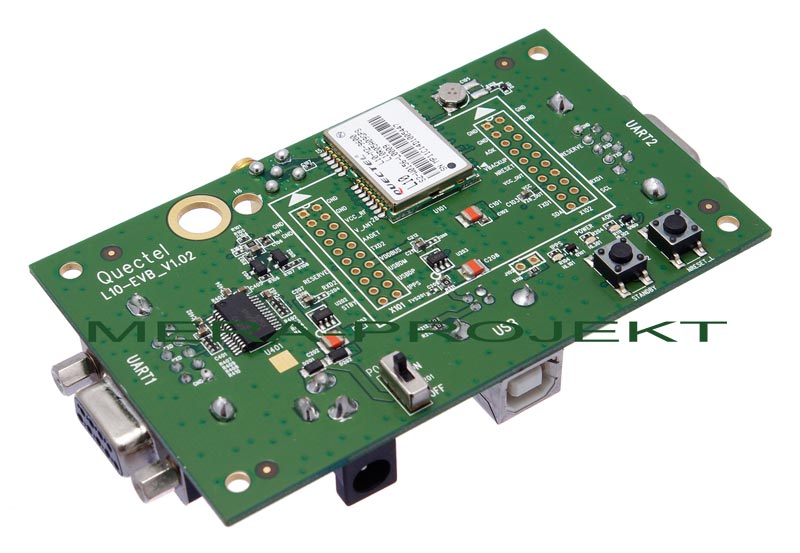

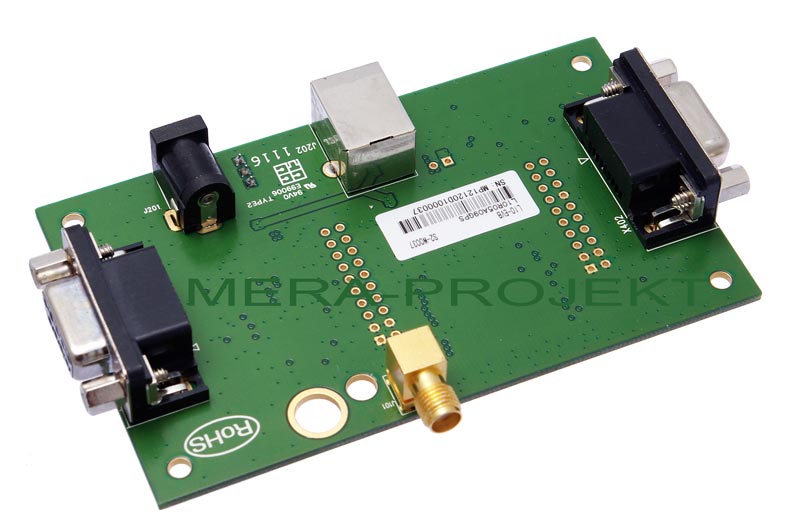

• Płytka bazowa zestawu uruchomieniowego zawierająca moduł L10
• Zasilacz 5VDC/2A
• Antena zewnętrzna GPS, aktywna
• Konwerter USB 2.0 - RS232
• Kabel USB
• Dokumentacja na CD

Do pobrania:

EVB User Guide

L10 GPS Module Specification

L10 GPS Protocol Specification

L10 Hardware Design Application Notes

L10 Hardware Design

Moduł L20 (SiRFStarIV chipset, 12.2x16x2.4mm, 24-pin SMD)

Kod produktu: L20

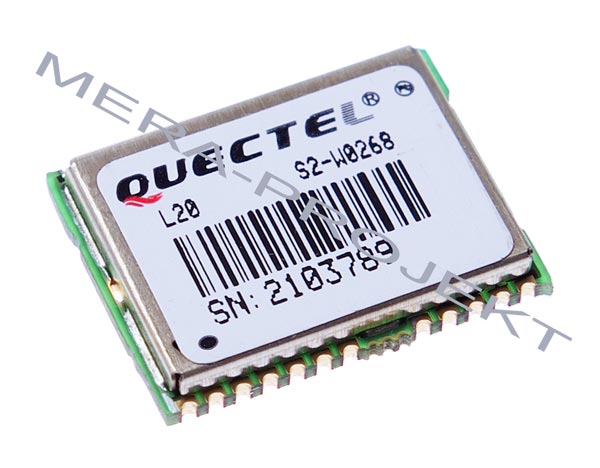

The L20 can provide the high performance GPS engine module which is embedded the SIRFstarIVTM chip solution with SIRFawareTM technology. With 48 PRN channels, the L20 module acquires and tracks satellites in the shortest time even at indoor signal level. With a super compact profile of 16.0mm x 12.2mm x 2.4mm, This make it perfectly suited for automotive, and industrial applications product with strict size and cost requirements.

. -163dBm tracking sensitivity
.  Highest autonomous mode acquisition sensitivity, -148dBm
.  48 PRN channels
.  Low tracking power consumption, 41mA (passive antenna)
.  Removes in-band jammers up to 80 dB-Hz
.  Tracks up to 8 CW jammers

Do pobrania:

L20 GPS Module Specification

Zestaw uruchomieniowy dla modułu GPS L10

Kod produktu: L10EVB-KIT

Zestaw zawiera moduł GPS L20

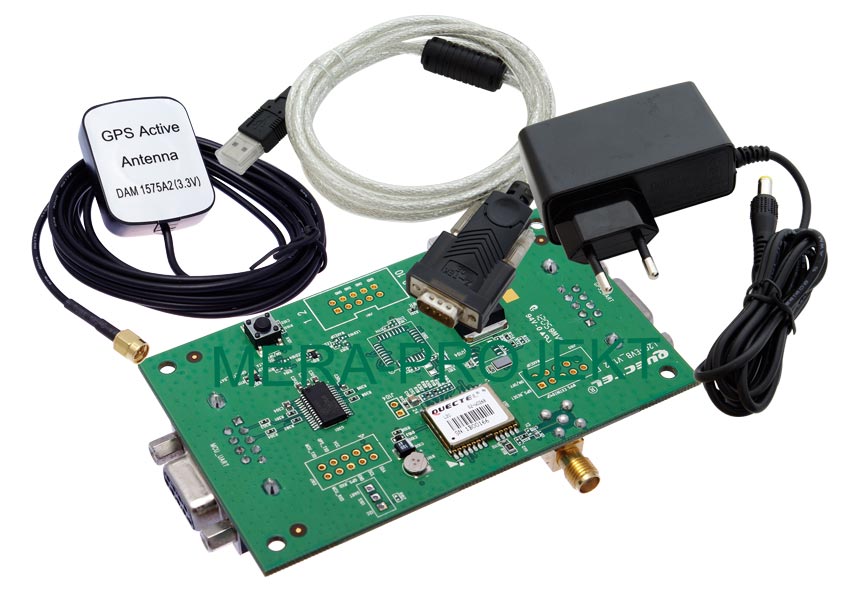

W skład zestawu wchodzą:

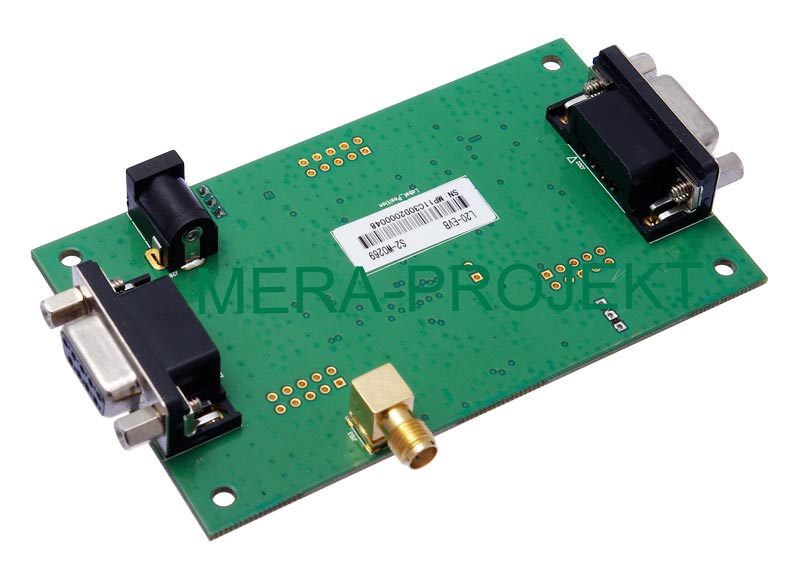

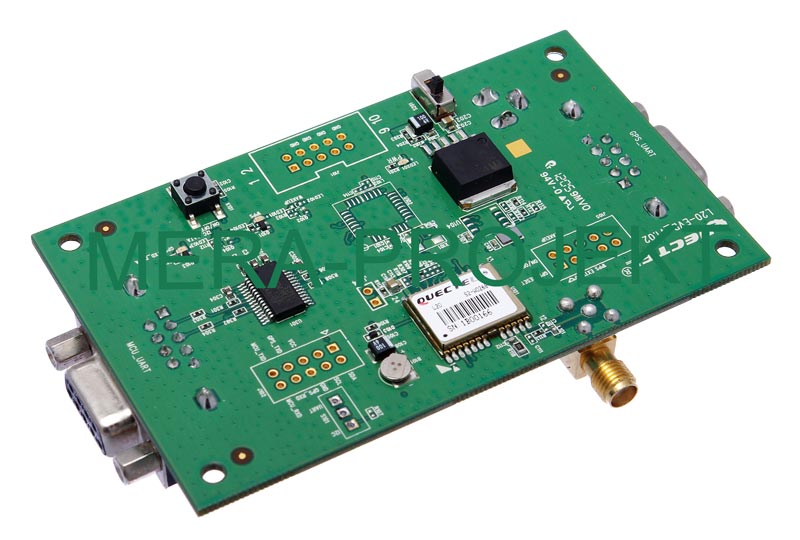

• Płytka bazowa zestawu uruchomieniowego zawierająca moduł L20
• Zasilacz 5VDC/2A
• Antena zewnętrzna GPS, aktywna
• Konwerter USB 2.0 - RS232
• Dokumentacja na CD

Do pobrania:

EVB User Guide

L20 GPS Module Specification

L20 GPS Protocol Specification

L20 Hardware Design

L20 Application Note
